How can I design stackable metal tins for retail display and storage?

Designing metal tins that stack reliably at retail and compactly in storage is both an engineering challenge and a business opportunity. Put, good stacking performance reduces shelf space, improves visual presentation, lowers breakage rates, and reduces logistics costs—operational benefits that directly translate into higher sales and profit margins. To achieve this, you must integrate structural mechanics with retail realities: control tolerances to enable cans to stack as intended; design lids and rims so they interlock without scratching the graphics; select materials and specifications that resist denting under pallet pressure; and plan decorations to withstand repeated handling. This reduces costs and helps your brand stand out from the competition.

Metal Tins—Structural Design Principles for Stackability and Strength

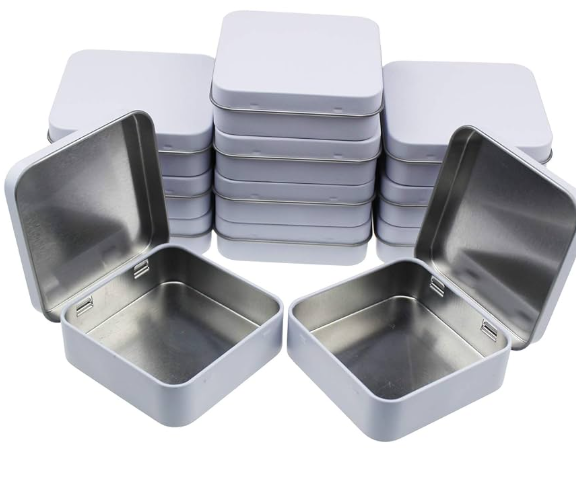

Stackable metal tins must withstand vertical loads without deformation, resist lateral slippage, and maintain their appearance after repeated stacking and unstacking. First and foremost, consider their geometry: a flat, sufficiently rigid top surface, combined with shallow grooves or positive positioning bosses, ensures stable stacking. Conversely, a shallow, flexing lid can create wobble and increase the risk of slippage. Therefore, lids should be designed with controlled crowning or ribbed patterns to increase their rigidity while providing stable support for the can base above.

Next, consider load distribution. Using a continuous bead and a wider lid flange distributes compressive forces over a larger lid area, reducing localized bending. Where aesthetics allow, shallow top ribs or embossed patterns can be added to increase structural depth without increasing thickness. For large can sizes, consider incorporating internal support ribs within the lid flange, shifting the load path to a more robust portion of the can rather than the thin can wall.

Designing the lid, cover, and rim of metal tins to ensure secure stacking

The closure system determines how tins perform when stacked and how easily consumers can open them. For stackable metal cans, the lid must provide a stable sealing surface while ensuring resealability and retaining the can’s design. Several proven closure strategies are available.

First, precision press-fit (slide-on) lids are cost-effective but are prone to tolerances and dents. When choosing a slide-on style, the lid should be designed with a reinforced locking bead, and the can body should have a matching bead to maintain uniform contact. Add a separate inner lip to the lid that fits into a matching groove on the can body.

Secondly, threaded lids offer the most reliable reseal and compression fit. Use a shallow thread profile and a recessed top surface so the bottom of the next can fits into the recessed area, ensuring secure stacking. Threaded lids also allow for the installation of gaskets for moisture-sensitive products, providing compression and load distribution while maintaining a tight barrier. On the other hand, if you choose a threaded lid, ensure the top of the lid is flat or slightly recessed to accommodate the bottom of the can above, ensuring stable stacking.

Choosing materials, specifications, and coatings strikes a balance between durability and aesthetics.

Selecting the right substrate and surface finish for stackable metal cans requires a balance between mechanical properties, printability, and sustainability. Tinplate and aluminum are the main options, each with its own advantages and disadvantages.

Tinplate offers excellent lithographic print quality and stiffness at a competitive price. It performs well under embossing processes and can withstand repeated stacking if the appropriate thickness is specified—typically 0.20-0.30 mm for small and medium-sized cans, and up to 0.30-0.40 mm for large or heavy tins. Metallurgical grade and coating thickness have a greater impact on dent resistance than nominal thickness alone; therefore, be sure to specify the minimum bend radius and impact resistance in your contract.

Aluminum is lightweight and corrosion-resistant, making it suitable for use in wet retail environments or high-end travel containers. While aluminum requires different printing and coating processes, it can achieve thinner gauges while maintaining comparable stiffness to heavier tinplate, saving on shipping costs. For stackable designs, aluminum’s lower modulus of elasticity means you may need localized ribs or reinforcement to achieve the same load-bearing capacity.

Manufacturing, Processing, Cost Trade-offs, and Minimum Order Strategies

A practical, stackable metal tin design must consider manufacturing realities. Die geometry, die costs, decorative panels, and minimum order quantities determine unit costs and influence which designs are feasible. A precise lid-base interface requires precision molds and alignment fixtures. Customizing lid grooves, threads, or interlocking bosses increases mold complexity, increasing upfront costs, but ensures repeatable stacking behavior. Furthermore, for small batches or high-SKU products, digital printing and standardized bottle shapes can reduce initial investment. In contrast, offset printing with custom molds offers the best unit price for high-volume production.

Logistics, Retail Sales, Testing, and Quality Assurance

Stackable metal tins exist in two environments: the supply chain and on the retail shelf. Address both environments through testing and merchandising. First, conduct mechanical tests that simulate real-world stacking conditions: compressive load tests that simulate pallet and shelf loads, drop tests for point-of-sale handling, and vibration tests for shipping. Define appropriate acceptance criteria based on your display plan—if the product will be stacked three high on an open shelf, validate the design under three-high static loads with a margin.

From a merchandising perspective, metal tins should be designed as modular building blocks for the shelf layout. All SKUs in the family should use a consistent base size to facilitate 2×2 or 3×3 stacking, and incorporate a convenient pattern to ensure alignment when stacked. Additionally, consider multi-layer displays where cans can interlock for stability.

Ultimately,

Designing stackable metal tins can effectively save costs, enhance merchandise presentation, and increase perceived value—provided you plan thoroughly. From a sustainability perspective, metal cans generally outperform other rigid packaging materials due to their recyclability and reuse potential. To maintain this advantage, avoid multi-material internal laminates whenever possible, require the use of recyclable coatings, and clearly define recycling targets in raw material procurement.
